1. Objects and Relationship

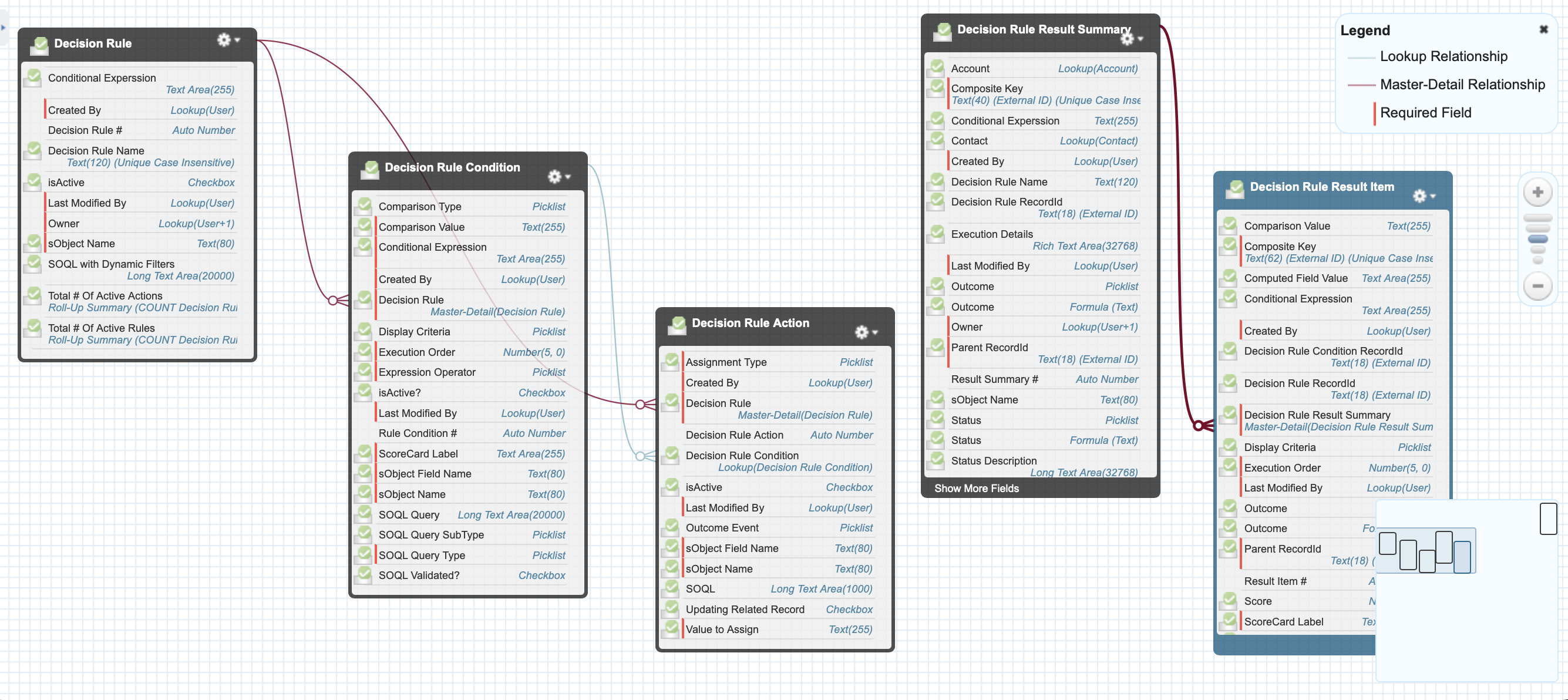

Decision Rule Engine sObjects and Relationships

1. Configuration sObjects

Necessary to configure rules, conditions, and actions for each Salesforce object.

1.1 Decision Rule

This sObject is the core configuration component of the Decision Rule Engine. It acts as a parent table that defines the overall rule and links to one or more Conditions and Actions.

Custom Fields for "Decision Rule" Object

Field Label	API Name	Type	Attributes
Conditional Experssion	cm_ruleengine__Conditional_Experssion__c	Textarea (255)
Created By ID	CreatedById	Lookup (User)	Required
Created Date	CreatedDate	Datetime	Required
Decision Rule #	Name	Text (80)	Required
Decision Rule Name	cm_ruleengine__Decision_Rule_Name__c	Text (120)	Unique
Deleted	IsDeleted	Checkbox	Required
isActive	cm_ruleengine__isActive__c	Checkbox	Required
Last Activity Date	LastActivityDate	Date
Last Modified By ID	LastModifiedById	Lookup (User)	Required
Last Modified Date	LastModifiedDate	Datetime	Required
Last Referenced Date	LastReferencedDate	Datetime
Last Viewed Date	LastViewedDate	Datetime
Owner ID	OwnerId	Lookup (Group, User)	Required
Record ID	Id	Id (18)	Required
sObject Name	cm_ruleengine__sObject_Name__c	Text (80)	Required
SOQL with Dynamic Filters	cm_ruleengine__SOQL_Dynamic_Filters__c	Textarea (20000)
System Modstamp	SystemModstamp	Datetime	Required
Total # Of Active Actions	cm_ruleengine__Total_Of_Active_Actions__c	Formula (Double)
Total # Of Active Rules	cm_ruleengine__Total_Of_Active_Rules__c	Formula (Double)

1.2 Decision Rule Condition

The Decision Rule Condition Table is a child of the Decision Rule Table and stores the logical conditions that determine when a rule’s actions should be executed. Each condition acts as a filter or criteria evaluated when the rule is triggered.

Custom Fields for "Decision Rule Condition" Object

Field Label	API Name	Type	Help Text	Attributes
Comparison Value	cm_ruleengine__Comparison_Value__c	Text (255)		Required
Conditional Expression	cm_ruleengine__Conditional_Expression__c	Textarea (255)		Required
Created By ID	CreatedById	Lookup (User)		Required
Created Date	CreatedDate	Datetime		Required
Decision Rule	cm_ruleengine__Decision_Rule__c	Lookup (Cm_Ruleengine__Decision_Rule__C)		Required
Deleted	IsDeleted	Checkbox		Required
Execution Order	cm_ruleengine__Execution_Order__c	Number (5, 2)		Required
Expression Operator	cm_ruleengine__Expression_Operator__c	Picklist (==; !=; <; <=; >; >=; in; not in; includes; excludes; like; contains)		Required
isActive?	cm_ruleengine__isActive__c	Checkbox		Required
Last Activity Date	LastActivityDate	Date
Last Modified By ID	LastModifiedById	Lookup (User)		Required
Last Modified Date	LastModifiedDate	Datetime		Required
Last Referenced Date	LastReferencedDate	Datetime
Last Viewed Date	LastViewedDate	Datetime
Record ID	Id	Id (18)		Required
Rule Condition #	Name	Text (80)		Required
ScoreCard Label	cm_ruleengine__ScoreCard_Label__c	Textarea (255)		Required
sObject Field Name	cm_ruleengine__sObject_Field_Name__c	Text (80)	sObject Field Name	Required
sObject Name	cm_ruleengine__sObject_Name__c	Text (80)	sObject API Name	Required
SOQL Query	cm_ruleengine__SOQL_Query__c	Textarea (20000)	SOQL to query the data for the evaluation
SOQL Query SubType	cm_ruleengine__SOQL_Query_SubType__c	Picklist (AVG; COUNT; COUNT_DISTINCT; MIN; MAX; SUM)
SOQL Query Type	cm_ruleengine__SOQL_Query_Type__c	Picklist (Aggregate Query; Field Value)		Required
SOQL Validated?	cm_ruleengine__SOQL_Validated__c	Checkbox		Required
System Modstamp	SystemModstamp	Datetime		Required

1.3 Decision Rule Action

The Decision Rule Action Table is a child of the Decision Rule Table and stores the automated actions that should be performed when the rule's conditions are met. Each action record defines a specific update or task that will be executed.

In its standard use, this table contains field update actions that apply changes directly to the parent record (the record that triggered the rule execution). For example, it can update a field value, change a status, or flag a record based on the outcome of the condition evaluation.

Custom Fields for "Decision Rule Action" Object

Field Label	API Name	Type	Attributes
Assignment Type	cm_ruleengine__Assignment_Type__c	Picklist (Pre-Defined Static Value; Computed Using Execution Order; Computed Field Value)	Required
Created By ID	CreatedById	Lookup (User)	Required
Created Date	CreatedDate	Datetime	Required
Decision Rule	cm_ruleengine__Decision_Rule__c	Lookup (Cm_Ruleengine__Decision_Rule__C)	Required
Decision Rule Action	Name	Text (80)	Required
Decision Rule Condition	cm_ruleengine__Decision_Rule_Condition__c	Lookup (Cm_Ruleengine__Decision_Rule_Condition__C)
Deleted	IsDeleted	Checkbox	Required
isActive	cm_ruleengine__isActive__c	Checkbox	Required
Last Activity Date	LastActivityDate	Date
Last Modified By ID	LastModifiedById	Lookup (User)	Required
Last Modified Date	LastModifiedDate	Datetime	Required
Last Referenced Date	LastReferencedDate	Datetime
Last Viewed Date	LastViewedDate	Datetime
Outcome Event	cm_ruleengine__Outcome_Event__c	Picklist (All; Failed; Passed; Unknown)
Record ID	Id	Id (18)	Required
sObject Field Name	cm_ruleengine__sObject_Field_Name__c	Text (80)	Required
sObject Name	cm_ruleengine__sObject_Name__c	Text (80)	Required
SOQL	cm_ruleengine__SOQL__c	Textarea (1000)
System Modstamp	SystemModstamp	Datetime	Required
Updating Related Record	cm_ruleengine__Updating_Related_Record__c	Checkbox	Required
Value to Assign	cm_ruleengine__Value_to_Assign__c	Text (255)	Required

2. Output sObjects

Output sObjects lists the Salesforce objects created or updated due to the execution of a Decision Rule.

2.1 Decision Rule Result Summary

Provides a summary of the outcome after the decision rule is executed, including whether the conditions were met and which actions were performed.

Custom Field "Decision Rule Result Summary"

Field Label	API Name	Type	Help Text	Attributes
Account	cm_ruleengine__Account__c	Lookup (Account)
Alias Match Count	Alias_Match_Count__c	Text (255)
Bank Verification	Bank_Verification__c	Text (255)
Composite Key	cm_ruleengine__Composite_Key__c	Text (40)	"Parent RecordId" + "=::=" + Decision Rule RecordId"	Required, Unique, External ID
Conditional Experssion	cm_ruleengine__Conditional_Experssion__c	Text (255)
Contact	cm_ruleengine__Contact__c	Lookup (Contact)
Created By ID	CreatedById	Lookup (User)		Required
Created Date	CreatedDate	Datetime		Required
Credit Score	Credit_Score__c	Text (255)
Decision Rule Name	cm_ruleengine__Decision_Rule_Name__c	Text (120)
Decision Rule RecordId	cm_ruleengine__Decision_Rule_RecordId__c	Text (18)		External ID
Deleted	IsDeleted	Checkbox		Required
Eviction Count	Eviction_Count__c	Text (255)
Execution Details	cm_ruleengine__Execution_Details__c	Textarea (32768)
KYC Check	KYC_Check__c	Text (255)
Last Activity Date	LastActivityDate	Date
Last Modified By ID	LastModifiedById	Lookup (User)		Required
Last Modified Date	LastModifiedDate	Datetime		Required
Last Referenced Date	LastReferencedDate	Datetime
Last Viewed Date	LastViewedDate	Datetime
Outcome	cm_ruleengine__Outcome__c	Picklist (Passed; Failed; Unknown)	Final outcome of the Rule Engine
Outcome	cm_ruleengine__OutcomeImage__c	Formula (Text)
Owner ID	OwnerId	Lookup (Group, User)		Required
Parent RecordId	cm_ruleengine__Parent_RecordId__c	Text (18)		Required, External ID
Record ID	Id	Id (18)		Required
Rental Application	Rental_Application__c	Lookup (Rental_Application__C)
Result Summary #	Name	Text (80)		Required
sObject Name	cm_ruleengine__sObject_Name__c	Text (80)
Status	cm_ruleengine__Status__c	Picklist (In-Progress; Completed; Failed)
Status	cm_ruleengine__StatusImage__c	Formula (Text)
Status Description	cm_ruleengine__Status_Description__c	Textarea (32768)
System Modstamp	SystemModstamp	Datetime		Required
Total # Of Active Rules	cm_ruleengine__Total_Active_Rules__c	Number (3, 0)	A total number of active rules associated with the Decision Rule record.
Total # Of Executed Rules	cm_ruleengine__Total_Of_Executed_Rules__c	Formula (Double)	Total # Of Executed Rules
Total # Of Failed Rules	cm_ruleengine__Total_Of_Failed_Rules__c	Formula (Double)	Total # Of Rule where Outcome = Failed
Total # Of Passed Rules	cm_ruleengine__Total_Of_Passed_Rules__c	Formula (Double)	Total # of Number where the OutCome = Pass

2.2 Decision Rule Result Items

The Decision Rule Result Items table captures detailed information about the individual outcomes of each Condition evaluated during the execution of a Decision Rule. While the Result Summary provides a high-level status, the Result Items offer a granular, itemized view of what happened at each step.

Custom Fields "Decision Rule Result Items"

Field Label	API Name	Type	Attributes
Comparison Value	cm_ruleengine__Comparison_Value__c	Text (255)
Composite Key	cm_ruleengine__Composite_Key__c	Text (62)	Required, Unique, External ID
Computed Field Value	cm_ruleengine__Computed_Field_Value__c	Textarea (255)
Conditional Expression	cm_ruleengine__Conditional_Expression__c	Textarea (255)
Created By ID	CreatedById	Lookup (User)	Required
Created Date	CreatedDate	Datetime	Required
Decision Rule Condition RecordId	cm_ruleengine__Decision_Rule_Condition_RecordId__c	Text (18)	External ID
Decision Rule RecordId	cm_ruleengine__Decision_Rule_RecordId__c	Text (18)	External ID
Decision Rule Result Summary	cm_ruleengine__Decision_Rule_Result_Summary__c	Lookup (Cm_Ruleengine__Decision_Rule_Result_Summary__C)	Required
Deleted	IsDeleted	Checkbox	Required
Execution Order	cm_ruleengine__Execution_Order__c	Number (5, 2)	Required
Last Activity Date	LastActivityDate	Date
Last Modified By ID	LastModifiedById	Lookup (User)	Required
Last Modified Date	LastModifiedDate	Datetime	Required
Last Referenced Date	LastReferencedDate	Datetime
Last Viewed Date	LastViewedDate	Datetime
Outcome	cm_ruleengine__Outcome__c	Picklist (Passed; Failed; Unknown)
Outcome	cm_ruleengine__OutcomeImage__c	Formula (Text)
Parent RecordId	cm_ruleengine__Parent_RecordId__c	Text (18)	Required, External ID
Record ID	Id	Id (18)	Required
Result Item #	Name	Text (80)	Required
ScoreCard Label	cm_ruleengine__ScoreCard_Label__c	Textarea (255)	Required
sObject Field Name	cm_ruleengine__sObject_Field_Name__c	Text (80)
sObject Name	cm_ruleengine__sObject_Name__c	Text (80)
Status	cm_ruleengine__StatusImage__c	Formula (Text)
Status	cm_ruleengine__Status__c	Picklist (In-Progress; Completed; Failed)
Status Description	cm_ruleengine__Status_Description__c	Textarea (32768)
System Modstamp	SystemModstamp	Datetime	Required
