This document provides comprehensive guidance on creating JSON field mappings to enable seamless two-way synchronization of data between QuickBooks and Salesforce. It outlines the process of configuring field mappings, ensuring accurate data exchange, and maintaining consistency between both platforms. By leveraging this integration, businesses can automate data flow, minimize manual intervention, and enhance operational efficiency.

Overview

To create custom field mapping records, use the structure outlined below. This guide explains the process for mapping fields between Salesforce and QuickBooks, ensuring accurate data synchronization between the two platforms.

1. Custom Field Mapping Object - Fields Definition

1.1 Source

The Source determines whether the data originates from QuickBooks or Salesforce.

QuickBooks: Used when transferring data from Salesforce to QuickBooks.
Salesforce: Used when transferring data from QuickBooks to Salesforce.

1.2 sObject API Name

The sObject API Name represents the name of the source object being mapped.

Salesforce to QuickBooks Mapping: Use the API name of the Salesforce object.
QuickBooks to Salesforce Mapping: Use the name of the corresponding QuickBooks object:
- cm_finance__Quickbooks_Customer__c
- cm_finance__Quickbooks_Product__c
- cm_finance__Quickbooks_Vendor__c
- cm_finance__Quickbooks_Invoice__c
- cm_finance__Quickbooks_Sales_Receipt__c

1.3 Mapping Type

The Mapping Type defines the destination object for the data.

Salesforce to QuickBooks Mapping: Choose one of the following based on the mapping type:
- Customer
- Vendor
- Product
- Invoice
- Sales Receipt
QuickBooks to Salesforce Mapping: Use the API name of the Salesforce object.

1.4 Field Mapping

Stores JSON configurations for defining field mappings between QuickBooks and Salesforce.
Facilitates the creation of request bodies for various mapping types.
Ensures accurate data synchronization by aligning QuickBooks fields with corresponding Salesforce fields.
Enhances flexibility by allowing customization of data mappings based on business requirements.
Simplifies integration management by maintaining structured field mapping records.

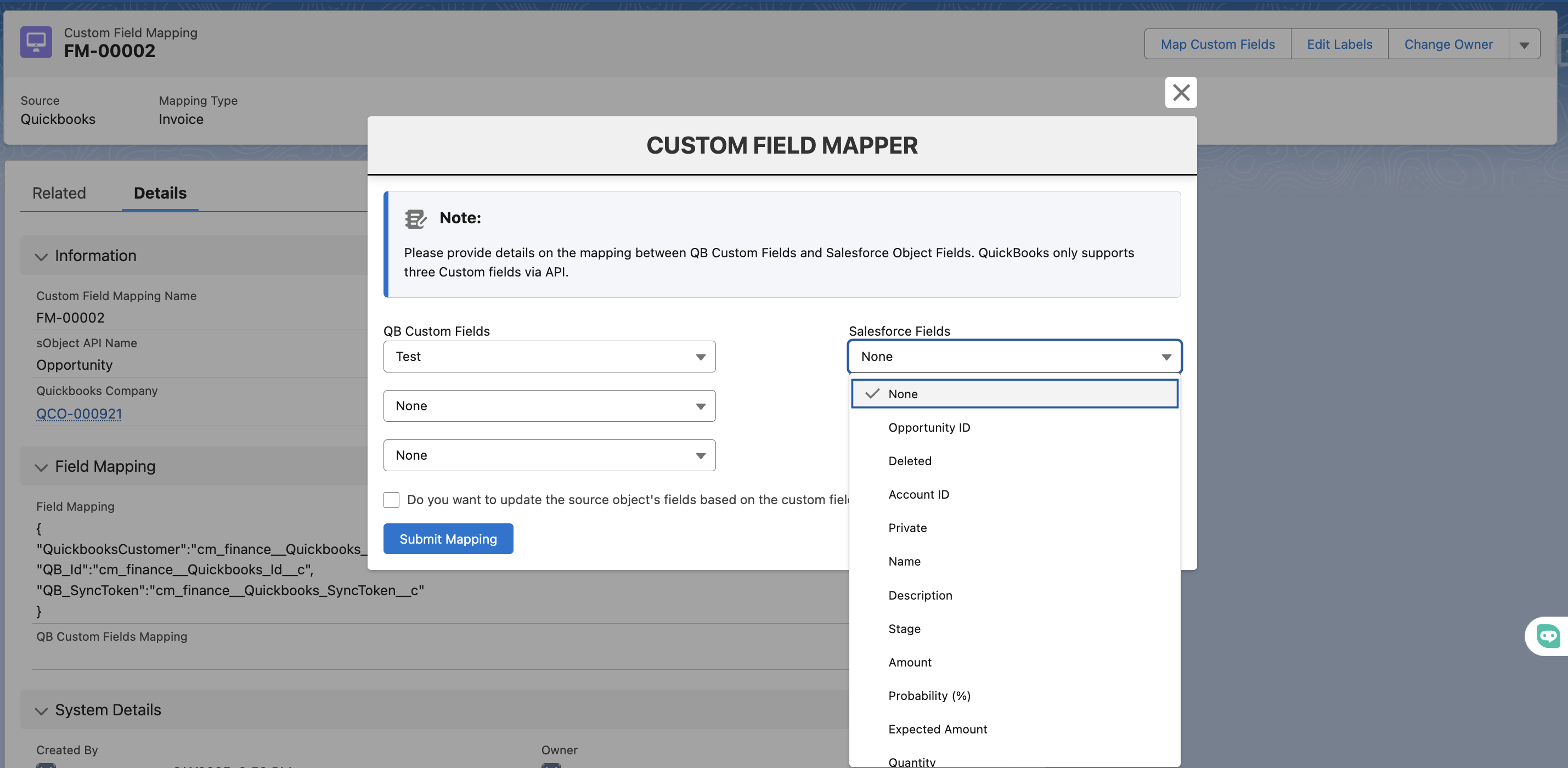

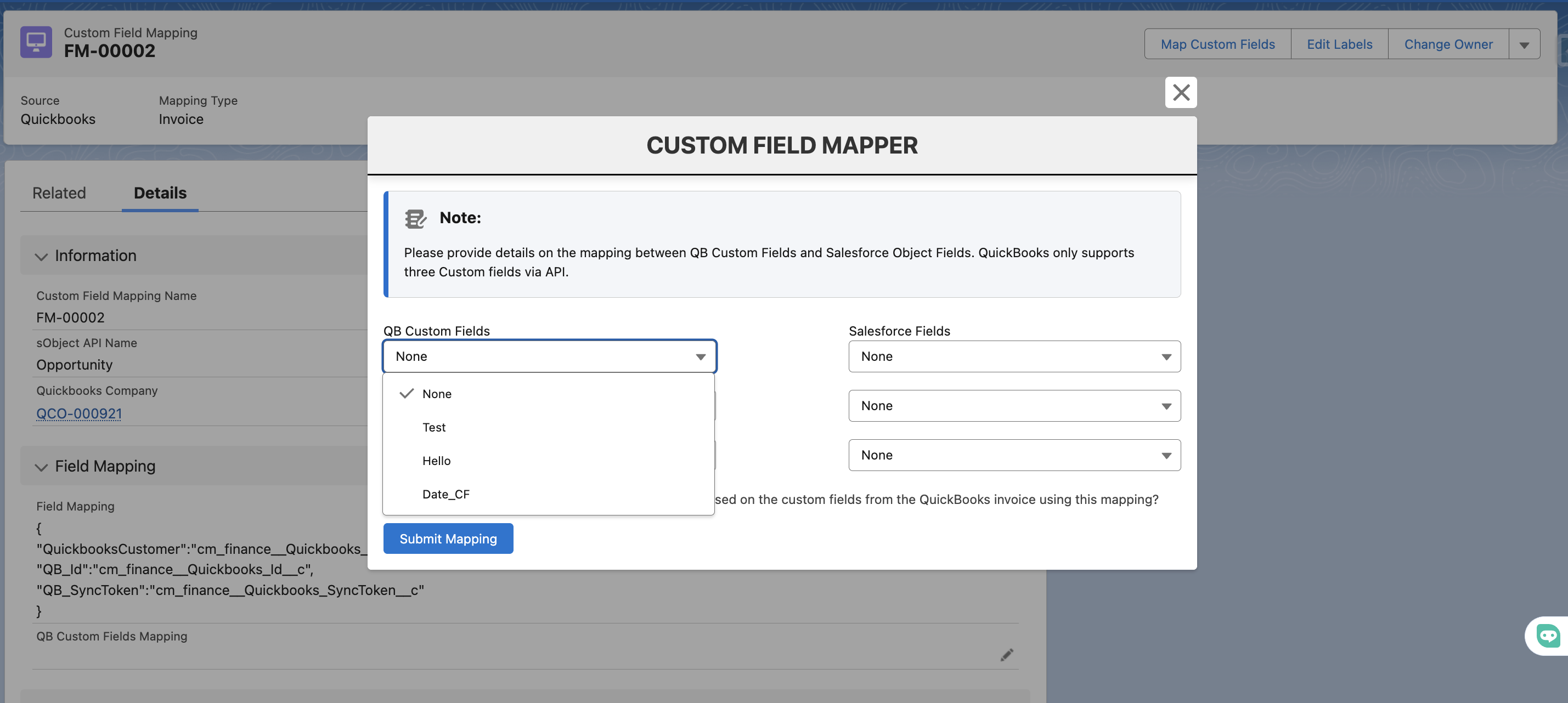

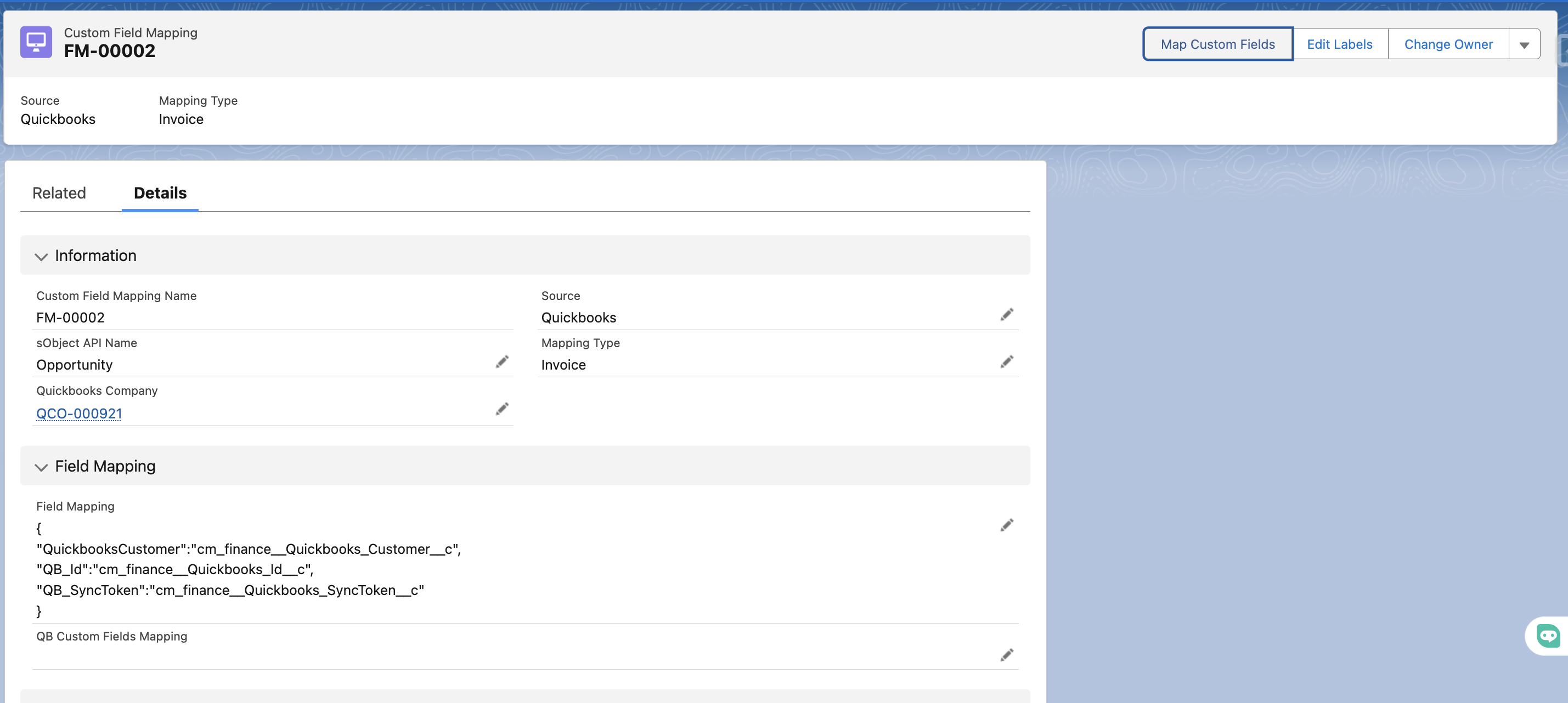

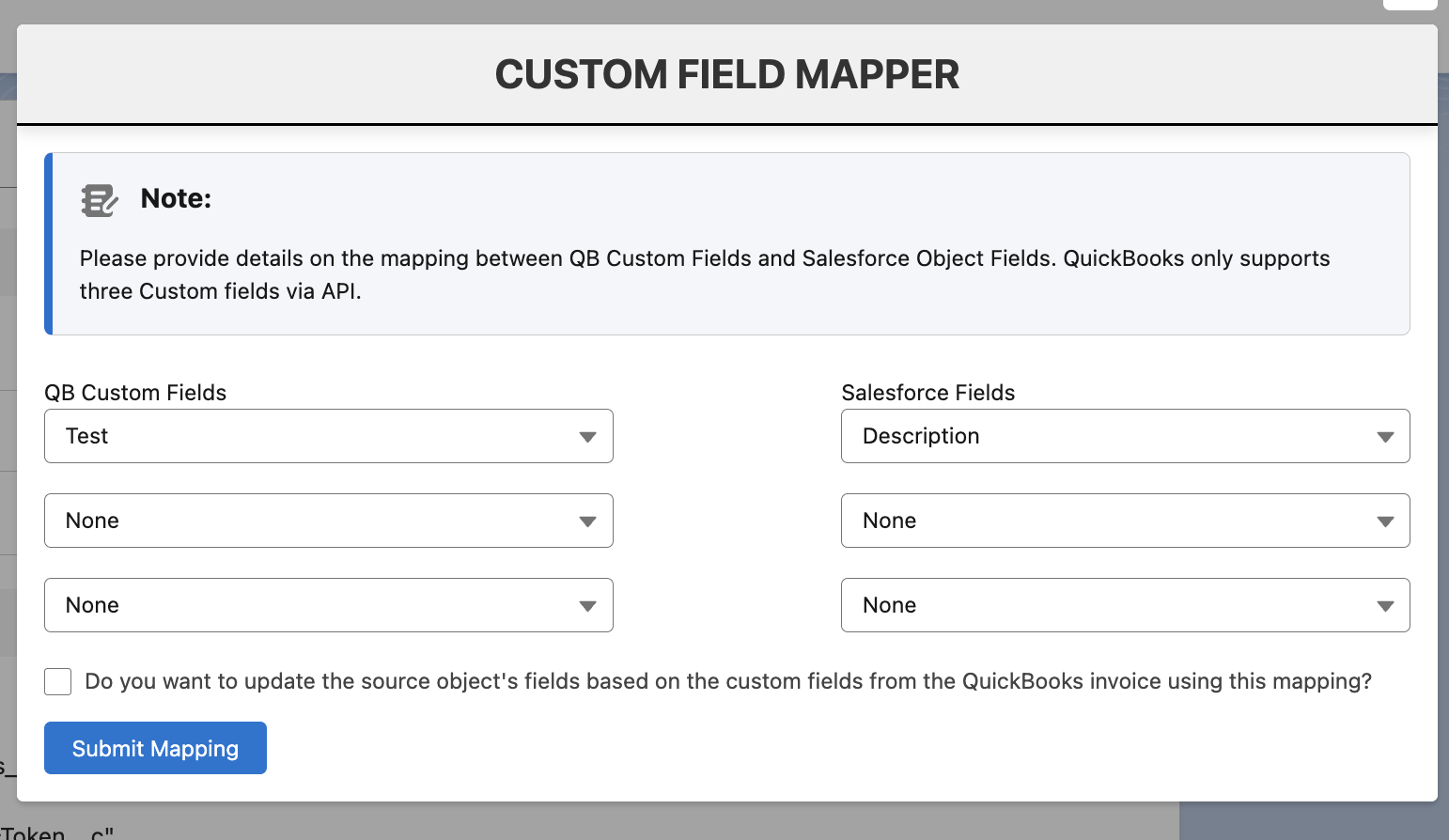

1.5 QB Custom Field Mapping

Stores JSON configurations for mapping custom fields in QuickBooks invoices and Sales Receipts.
Enables seamless synchronization of custom invoice and Sales Receipt fields between QuickBooks and Salesforce.
Ensures accurate data transfer by aligning QuickBooks custom fields with Salesforce.
Supports up to three custom fields via API for enhanced flexibility.

1.6 Enable Record Prefill

Automatically pre-fills the transaction from the source record and related products.

1.7 LineItem Pre-Population Mapping

JSON mapping used to retrieve and map product/line item data for Invoice and Sales Receipt creation.

1.8 Source Customer Lookup Field

It stores the API name of the field from the source record, which has the Quickbooks Customer linked to it, or which should be used to create the Quickbooks Customer in case it is not present.

This functionality is used to retrieve the corresponding QuickBooks Customer for invoice generation, applicable to both manual and automated workflows. If a QuickBooks Customer is not already associated with the record, the system will automatically create a new QuickBooks Customer using the available data from the source record.

Example:
If Opportunity is used as the source record for invoice creation, and Account is configured as the source object for the QuickBooks Customer, with the AccountId specified in the Source Invoice Customer Lookup Field, the system will attempt to fetch the QuickBooks Customer linked to that Account.

If no QuickBooks Customer is associated with the referenced Account, a new QuickBooks Customer record will be created using the data available on the Account linked via the AccountId field.

2. Custom Field Mapping Templates

2.1 Salesforce to QuickBooks Mapping

Below are the field mappings required for data transfer from Salesforce to QuickBooks. Some fields are optional, but required fields are marked with an asterisk (*).

2.1.1 Customer Mapping

QuickBooks Field

Description

displayName*

The name of the person or organization as displayed. If not supplied, the system generates DisplayName by concatenating customer name components supplied in the request from the following list: Title, GivenName, MiddleName, FamilyName, and Suffix.

email*

Primary email address. The address format must follow the RFC 822 standard.

suffix

Suffix of the name. For example, Jr. The DisplayName attribute or at least one of Title, GivenName, MiddleName, FamilyName, or Suffix attributes is required.

title

Title of the person. This tag supports i18n, all locales. The DisplayName attribute or at least one of Title, GivenName, MiddleName, FamilyName, or Suffix attributes is required.

firstName*

Given name or first name of a person. The DisplayName attribute or at least one of Title, GivenName, MiddleName, FamilyName, or Suffix attributes is required.

middleName

Middle name of the person. The person can have zero or more middle names. The DisplayName attribute or at least one of Title, GivenName, MiddleName, FamilyName, or Suffix attributes is required.

lastName*

Family name or the last name of the person. The DisplayName attribute or at least one of Title, GivenName, MiddleName, FamilyName, or Suffix attributes is required.

notes

Free form text describing the Customer.

phone

Primary Phone Number

companyName

The name of the company associated with the person or organization.

billingAddress.city*

Default billing address - city

billingAddress.state*

Default billing address - state

billingAddress.country*

Default billing address - country

billingAddress.addressLine1*

Default billing address - street

billingAddress.postalCode*

Default billing address - postalCode

shippingAddress.city

Default shipping address - city

shippingAddress.state

Default shipping address - state

shippingAddress.country

Default shipping address - country

shippingAddress.addressLine1

Default shipping address - street

shippingAddress.postalCode

Default shipping address - postalCode

balance

Specifies the open balance amount or the amount unpaid by the customer. For the create operation, this represents the opening balance for the customer.

preferredDeliveryMethod

Preferred delivery method. Values are Print, Email, or None.

printOnCheckName

Name of the person or organization as printed on a check. If not provided, this is populated from DisplayName.

taxable

If true, transactions for this customer are taxable. Default behavior: true, if DefaultTaxCodeRef is defined or false if TaxExemptionReasonId is set.

taxExemptionId

The tax exemption reason associated with this customer object. Applicable if automated sales tax is enabled (Preferences.TaxPrefs.PartnerTaxEnabled is set to true) for the company. Set TaxExemptionReasonId: to one of the following:

Id	Reason
1	Federal government
2	State government
3	Local government
4	Tribal government
5	Charitable organization
6	Religious organization
7	Educational organization
8	Hospital
9	Resale
10	Direct pay permit
11	Multiple points of use
12	Direct mail
13	Agricultural production
14	Industrial production / manufacturing
15	Foreign diplomat

job_cust

If true, this is a Job or sub-customer. If false or null, this is a top level customer, not a Job or sub-customer.

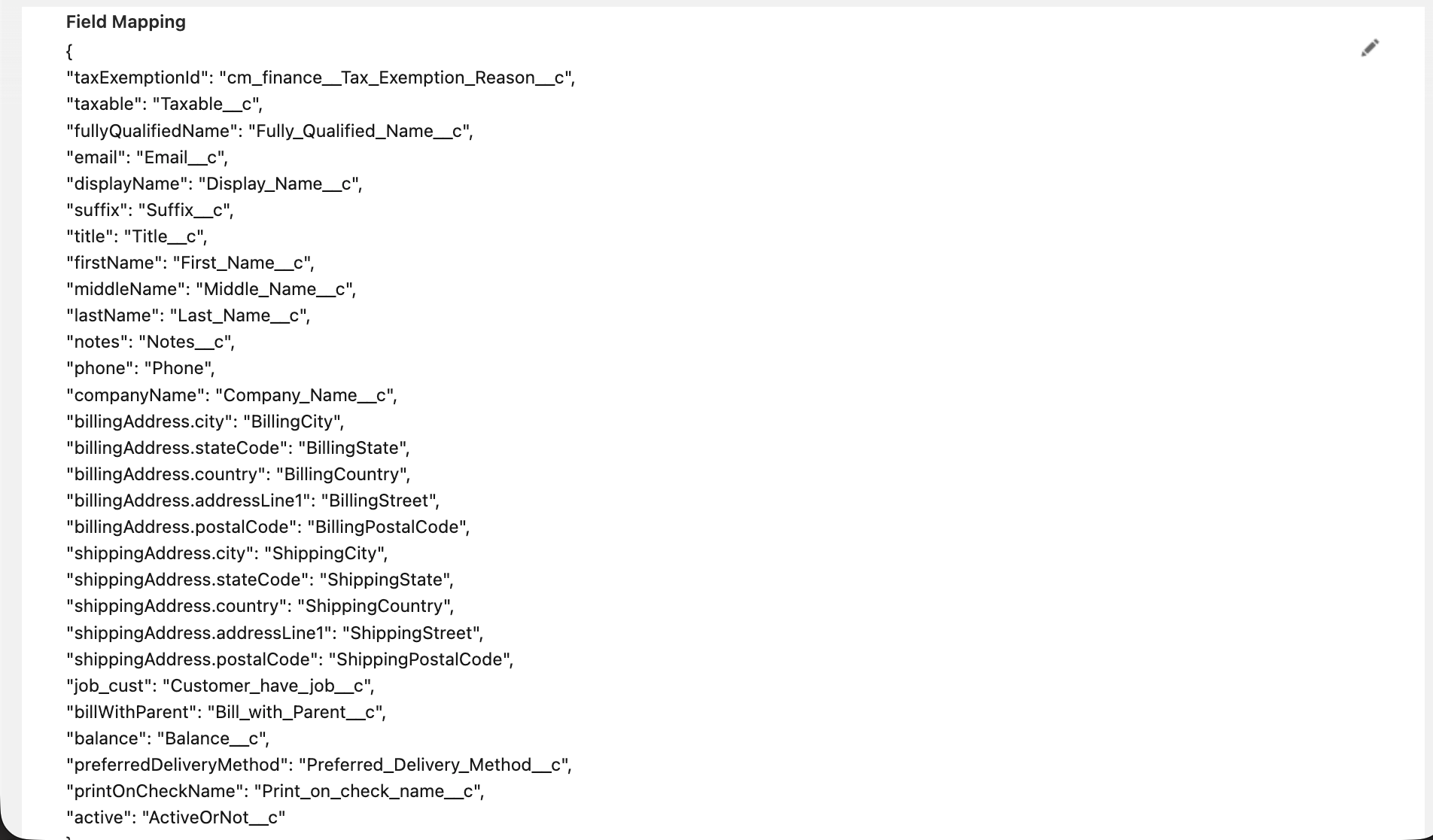

Sample Field Mapping for Customer (Salesforce Account Mapping)

{
"taxExemptionId": "cm_finance__Tax_Exemption_Reason__c",
"taxable": "Taxable__c",
"fullyQualifiedName": "Fully_Qualified_Name__c",
"email": "Email__c",
"displayName": "Display_Name__c",
"suffix": "Suffix__c",
"title": "Title__c",
"firstName": "First_Name__c",
"middleName": "Middle_Name__c",
"lastName": "Last_Name__c",
"notes": "Notes__c",
"phone": "Phone",
"companyName": "Company_Name__c",
"billingAddress.city": "BillingCity",
"billingAddress.stateCode": "BillingState",
"billingAddress.country": "BillingCountry",
"billingAddress.addressLine1": "BillingStreet",
"billingAddress.postalCode": "BillingPostalCode",
"shippingAddress.city": "ShippingCity",
"shippingAddress.stateCode": "ShippingState",
"shippingAddress.country": "ShippingCountry",
"shippingAddress.addressLine1": "ShippingStreet",
"shippingAddress.postalCode": "ShippingPostalCode",
"job_cust": "Customer_have_job__c",
"billWithParent": "Bill_with_Parent__c",
"balance": "Balance__c",
"preferredDeliveryMethod": "Preferred_Delivery_Method__c",
"printOnCheckName": "Print_on_check_name__c"
}

2.1.2 Product Mapping

QuickBooks Field	Description
name*	Name of the item. This value is unique.
fullyQualifiedName*	Fully qualified name of the entity. The fully qualified name prepends the topmost parent, followed by each sub element separated by colons.
typeOfProduct*	Classification that specifies the use of this item. See the description at the top of the Item entity page for details about supported item types. For requests with minor versions earlier than 4 specified, this field is read-only and system-defined as follows: Inventory--Default setting when TrackQtyOnHand, InvStartDate, and AssetAccountRef are specified. Used for goods the company sells and buys that are tracked as inventory. Service--Default setting when TrackQtyOnHand, InvStartDate, and AssetAccountRef are not specified. Used for non-tangible goods the company sells and buys that are not tracked as inventory. For example, specialized labor, consulting hours, and professional fees. For requests with minor version=4 query parameter, this field is required to be explicitly set with one of the following: Inventory--Used for goods the company sells and buys that are tracked as inventory. Service--Used for non-tangible goods the company sells and buys that are not tracked as inventory. For example, specialized labor, consulting hours, and professional fees. NonInventory--Use for goods the company sells and buys that are not tracked as inventory. For example, office supplies or goods bought on behalf of the customer.
unitPrice	Corresponds to the Price/Rate column on the QuickBooks Online UI to specify either unit price, a discount, or a tax rate for item. If used for unit price, the monetary value of the service or product, as expressed in the home currency. If used for a discount or tax rate, express the percentage as a fraction. For example, specify 0.4 for 40% tax.
purchaseCost	Amount paid when buying or ordering the item, as expressed in the home currency.
trackQty	True if there is quantity on hand to be tracked. Once this value is true, it cannot be updated to false. Applicable for items of type Inventory. Not applicable for Service or NonInventory item types.
quantityOnHand	Current quantity of the Inventory items available for sale. Not used for Service or NonInventory type items.Required for Inventory type items.
inventoryStartDate	Date of opening balance for the inventory transaction. For read operations, the date returned in this field is always the originally provided inventory start date. For update operations, the date supplied is interpreted as the inventory adjust date, is stored as such in the underlying data model, and is reflected in the QuickBooks Online UI for the object. The inventory adjust date is not exposed for read operations through the API. Required for Inventory type items.
taxable	If true, transactions for this item are taxable.

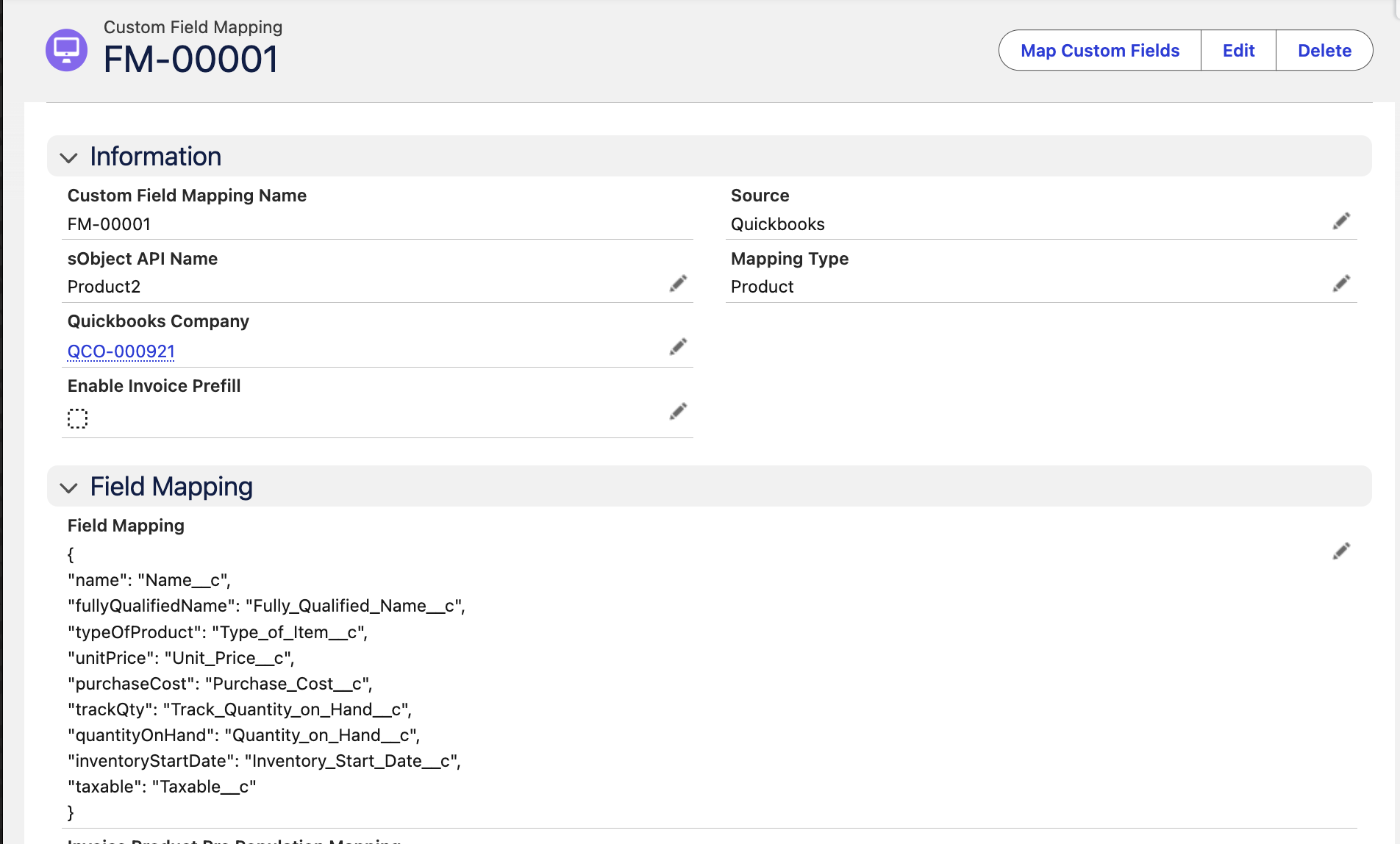

Sample Field Mapping for Product (Salesforce Product2 Mapping)

{
"name": "Name__c",
"fullyQualifiedName": "Fully_Qualified_Name__c",
"typeOfProduct": "Type_of_Item__c",
"unitPrice": "Unit_Price__c",
"purchaseCost": "Purchase_Cost__c",
"trackQty": "Track_Quantity_on_Hand__c",
"quantityOnHand": "Quantity_on_Hand__c",
"inventoryStartDate": "Inventory_Start_Date__c",
"taxable": "Taxable__c"
}

2.1.3 Vendor Mapping

QuickBooks Field	Description
displayName*	The name of the vendor as displayed. Must be unique across all Vendor, Customer, and Employee objects. Cannot be removed with sparse update. If not supplied, the system generates DisplayName by concatenating vendor name components supplied in the request from the following list: Title, GivenName, MiddleName, FamilyName, and Suffix.
email*	Primary email address. The address format must follow the RFC 822 standard.
suffix	Suffix of the name. For example, Jr. The DisplayName attribute or at least one of Title, GivenName, MiddleName, FamilyName, or Suffix attributes is required for object create.
title	Title of the person. This tag supports i18n, all locales. The DisplayName attribute or at least one of Title, GivenName, MiddleName, FamilyName, or Suffix attributes are required during create.
firstName*	Given name or first name of a person. The DisplayName attribute or at least one of Title, GivenName, MiddleName, FamilyName, or Suffix attributes is required for object create.
middleName	Middle name of the person. The person can have zero or more middle names. The DisplayName attribute or at least one of Title, GivenName, MiddleName, FamilyName, or Suffix attributes is required for object create.
lastName*	Family name or the last name of the person. The DisplayName attribute or at least one of Title, GivenName, MiddleName, FamilyName, or Suffix attributes is required for object create.
notes	Free form text describing the Customer.
phone	Primary Phone Number
companyName	The name of the company associated with the person or organization.
vendor1099	This vendor is an independent contractor; someone who is given a 1099-MISC form at the end of the year. A 1099 vendor is paid with regular checks, and taxes are not withheld on their behalf.
accNum	Name or number of the account associated with this vendor.
billingAddress.city*	Default billing address - city
billingAddress.state*	Default billing address - state
billingAddress.country*	Default billing address - country
billingAddress.addressLine1*	Default billing address - street
billingAddress.postalCode*	Default billing address - postalCode
printOnCheckName	Name of the person or organization as printed on a check. If not provided, this is populated from DisplayName.

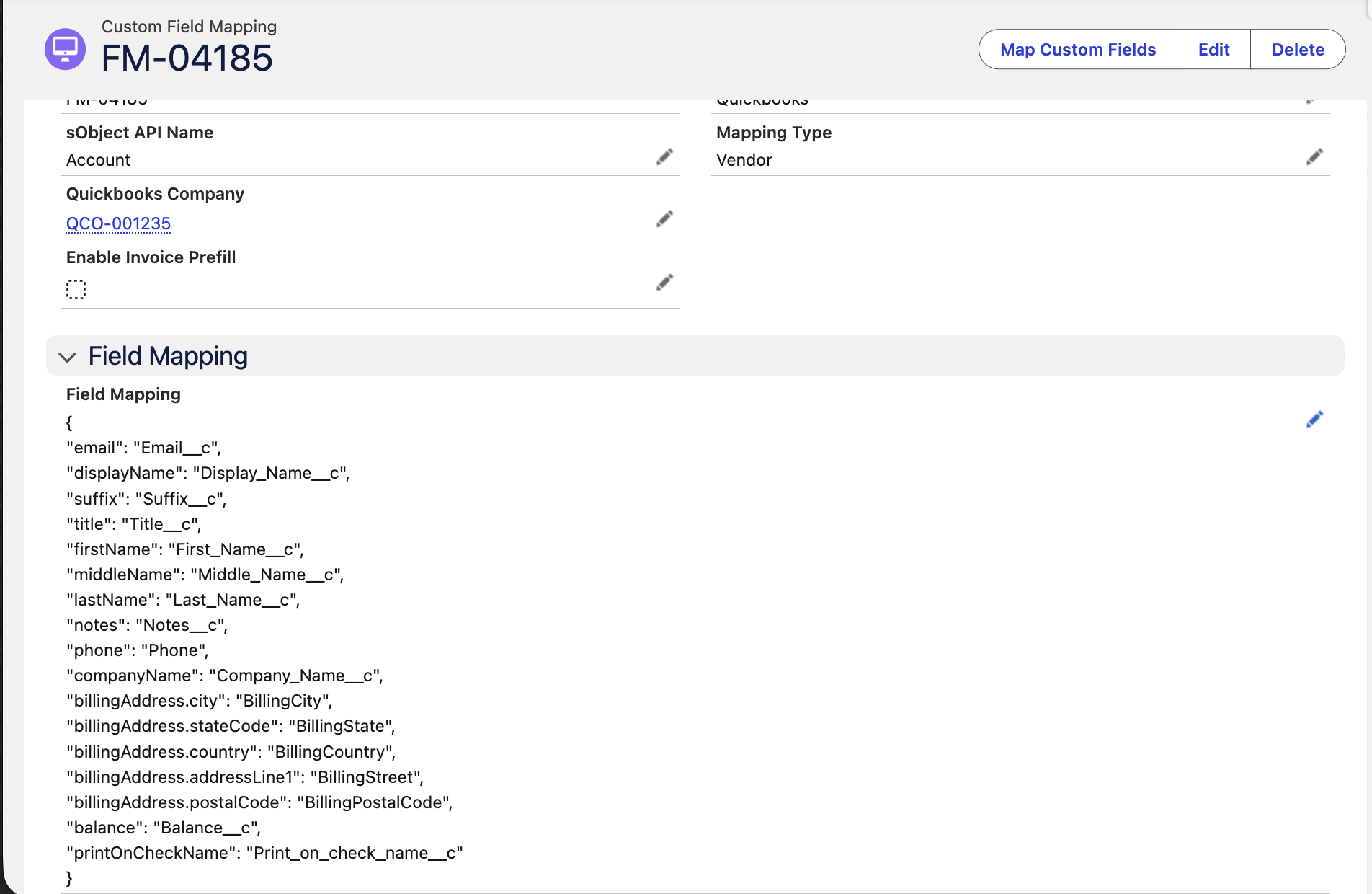

Sample Field Mapping for Vendor (Salesforce Account Mapping)

{
  "email": "Email__c",
  "displayName": "Display_Name__c",
  "suffix": "Suffix__c",
  "title": "Title__c",
  "firstName": "First_Name__c",
  "middleName": "Middle_Name__c",
  "lastName": "Last_Name__c",
  "notes": "Notes__c",
  "phone": "Phone",
  "companyName": "Company_Name__c",
  "billingAddress.city": "BillingCity",
  "billingAddress.stateCode": "BillingState",
  "billingAddress.country": "BillingCountry",
  "billingAddress.addressLine1": "BillingStreet",
  "billingAddress.postalCode": "BillingPostalCode",
  "balance": "Balance__c",
  "printOnCheckName": "Print_on_check_name__c"
}

2.1.4 Invoice Mapping

QuickBooks Field	Description
deposit	The deposit made towards this invoice.
txnDate	The date entered by the user when this transaction occurred. yyyy/MM/dd is the valid date format. For posting transactions, this is the posting date that affects the financial statements. If the date is not supplied, the current date on the server is used. Sort order is ASC by default.
dueDate	Date when the payment of the transaction is due. If date is not provided, the number of days specified in SalesTermRef added the transaction date will be used.
CustomerMemo	User-entered message to the customer; this message is visible to end user on their transactions.

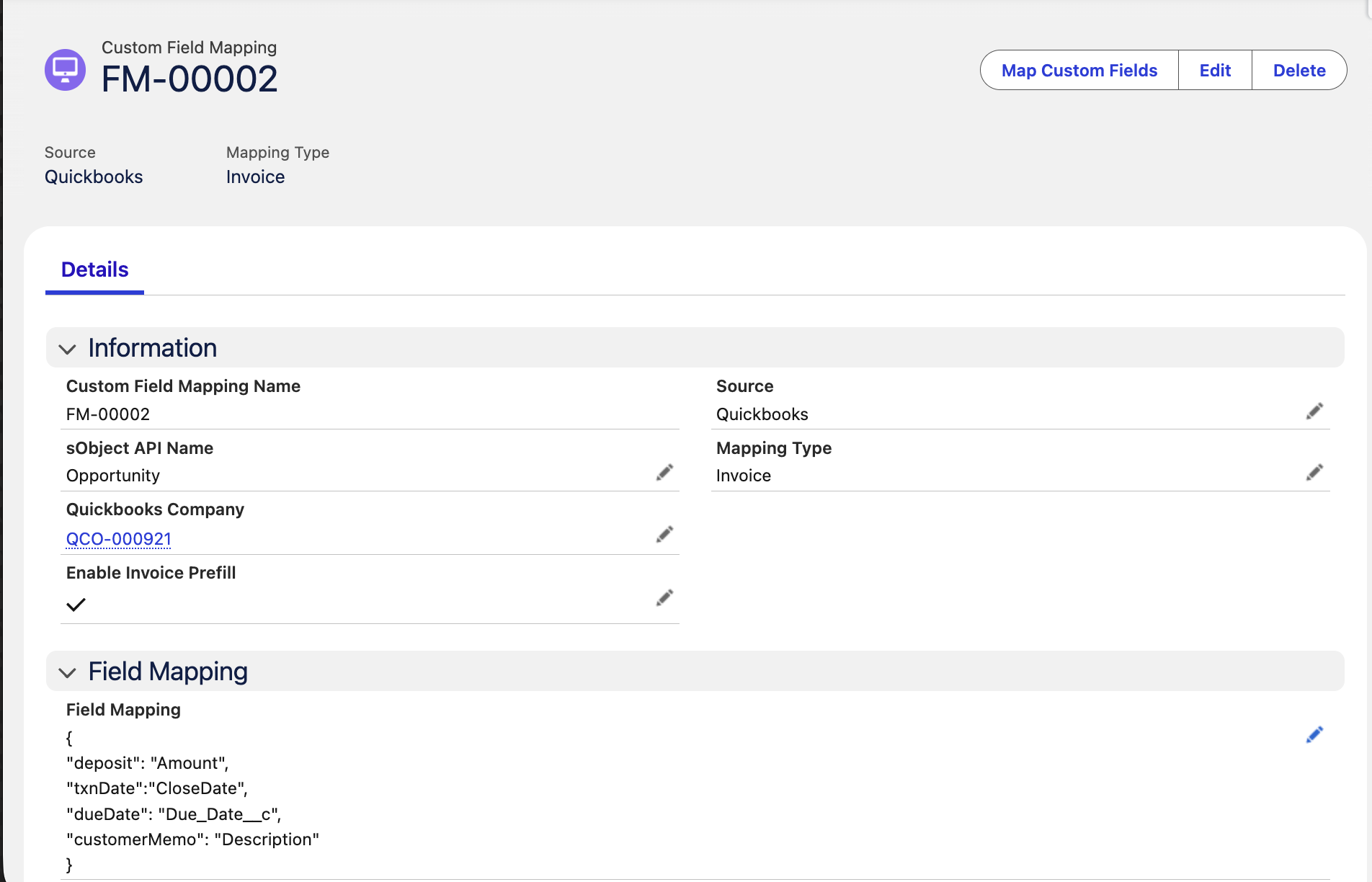

Sample Field Mapping for Invoice (Salesforce Opportunity Mapping)

FIELD MAPPING

{
"deposit": "Amount",
"txnDate":"CloseDate",
"dueDate": "CloseDate",
"customerMemo": "Description"
}

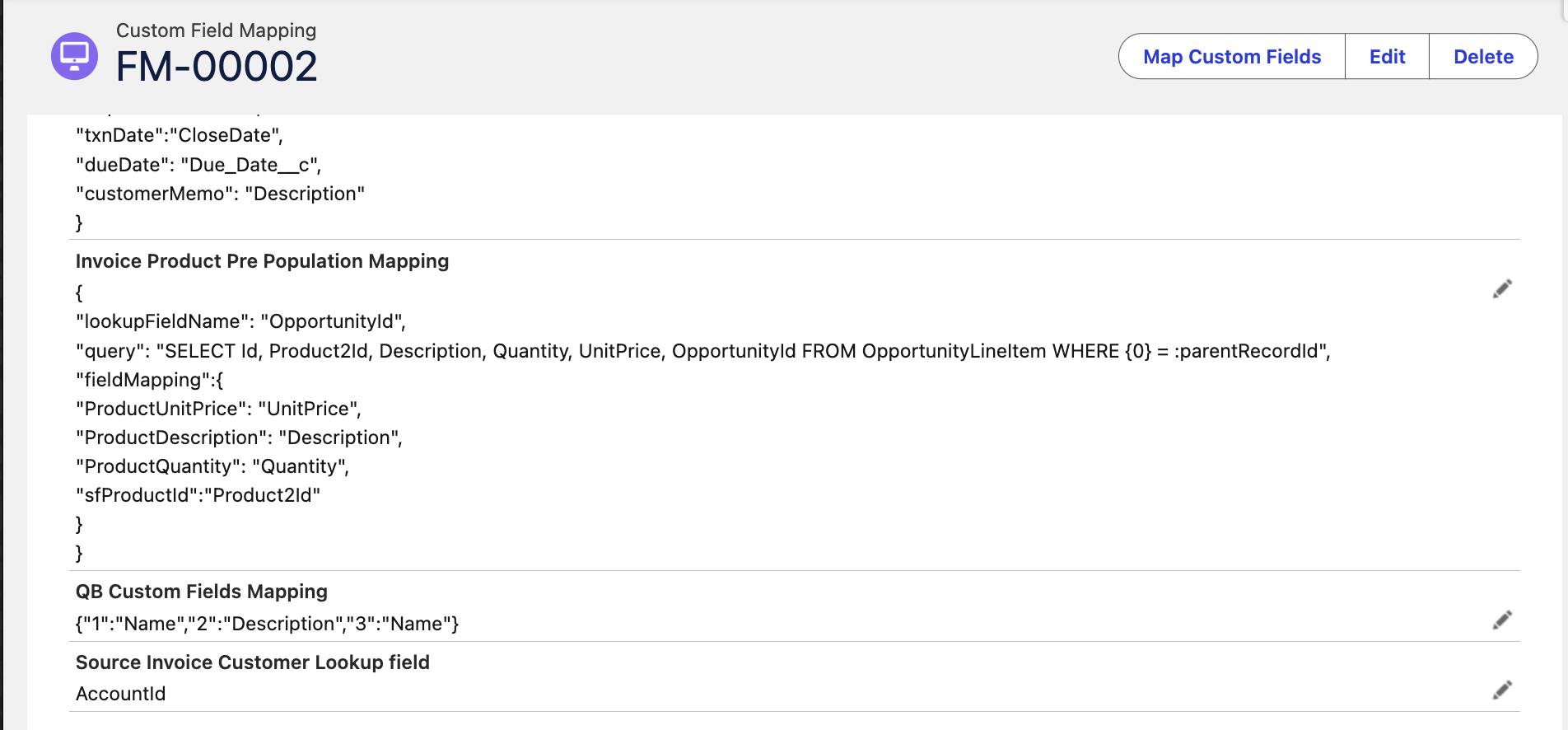

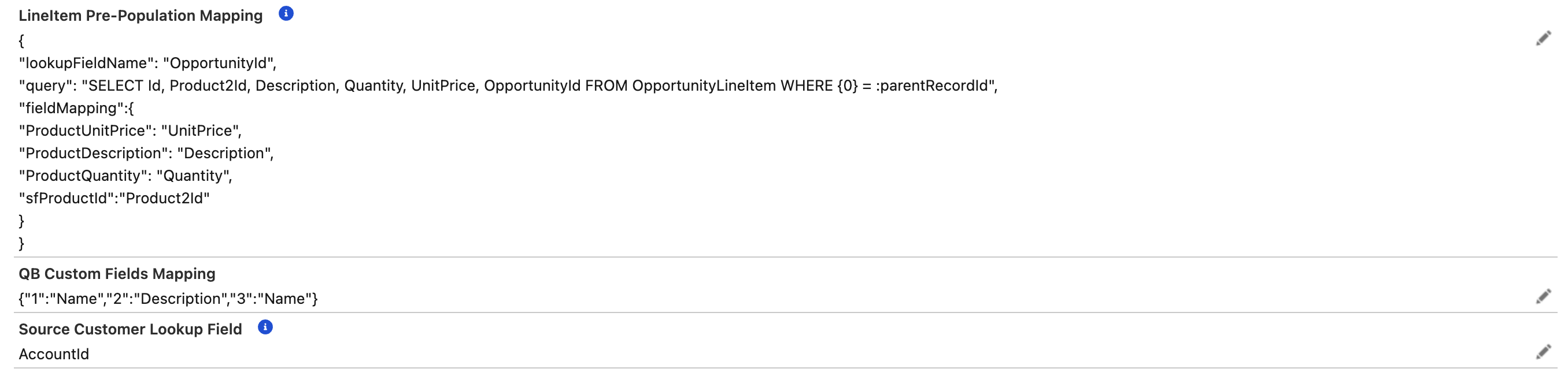

Invoice Product Pre Population Mapping

{
"lookupFieldName": "OpportunityId",
"query": "SELECT Id, Product2Id, Description, Quantity, UnitPrice,QB_Class_Id__c, OpportunityId FROM OpportunityLineItem WHERE {0} = :parentRecordId",
"fieldMapping":{
  "ProductUnitPrice": "UnitPrice",
  "ProductDescription": "Description",
  "ProductQuantity": "Quantity",
  "sfProductId":"Product2Id",
  "qbClassId" : "QB_Class_Id__c"
  }
}

Source Invoice Customer Lookup field

AccountId

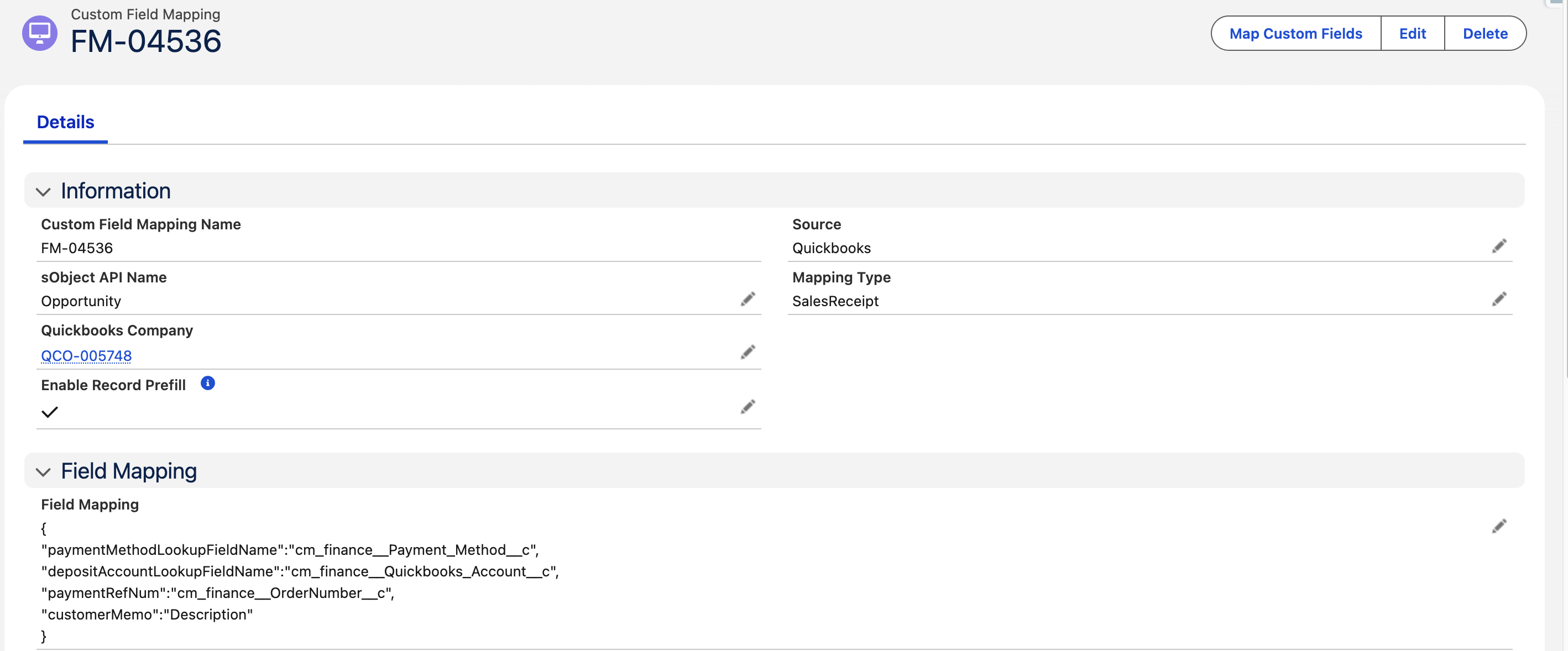

2.1.5 Sales Receipt Mapping

Use the Sales Receipt mapping to transfer Salesforce record data to QuickBooks Sales Receipts. Required fields depend on your QuickBooks configuration; map the customer, transaction date, payment details, deposit account, and line-item information as applicable.

QuickBooks Field	Description
`txnDate`	The date this transaction occurred (format: yyyy/MM/dd). Defaults to today if not provided.
`paymentRefNum`	The reference number for the payment applied to the sales receipt, such as a check number or transaction reference.
`customerMemo`	A message to the customer that appears on the sales receipt.
`billingEmail`	The billing email address associated with the sales receipt customer. If not populated related customer email will be used.
Payment Method Reference field (paymentMethodLookupFieldName)	The Salesforce field that references the QuickBooks payment method to apply to the sales receipt.
Quickbooks Account Reference field (depositAccountLookupFieldName)	The Salesforce field that references the QuickBooks deposit account where the sales receipt payment should be deposited.
Customer Lookup Field	The Salesforce field linking to the related QuickBooks Customer record. E.g., if your sales receipt source is Opportunity, this is typically `AccountId`.

Sample Field Mapping for Sales Receipt (Salesforce Opportunity Mapping)

FIELD MAPPING

JSON

{
  "txnDate": "CloseDate",
  "depositAccountLookupFieldName": "Quickbooks_Account__c",
  "paymentMethodLookupFieldName": "Payment_Method__c",
  "paymentRefNum": "Payment_Reference__c",
  "customerMemo": "Description"
}

Sales Receipt Product Pre Population Mapping

If there is related object present (like OpportunityLineItem) and have multiple lines items use below mapping:

{
  "lookupFieldName": "OpportunityId",
  "query": "SELECT Id, Product2Id, Description, Quantity, UnitPrice,QB_Class_Id__c, OpportunityId FROM OpportunityLineItem WHERE {0} = :parentRecordId",
  "fieldMapping": {
    "ProductUnitPrice": "UnitPrice",
    "ProductDescription": "Description",
    "ProductQuantity": "Quantity",
    "sfProductId": "Product2Id",
    "qbClassId" : "QB_Class_Id__c"
  }
}

If there is only single item and the data is present on the same object (Opportunity) then use below mapping:

Note: Use only when the fields exist on the same object on which the Sales Receipt is setup.

JSON

{
  "fieldMapping": {
    "ProductUnitPrice": "UnitPrice",
    "ProductDescription": "Description",
    "ProductQuantity": "Quantity",
    "sfProductId": "Product2Id",
    "qbClassId" : "QB_Class_Id__c"
  }
}

Source Sales Receipt Customer Lookup Field

AccountId

For Sales Receipts, the payment method and deposit account should be mapped when the transaction is paid at the time of sale. Confirm that the mapped values correspond to valid QuickBooks references before submitting the record.

2.2 QuickBooks to Salesforce Mapping (Optional)

This section describes Reverse Field Mapping, where the system populates Salesforce objects using data from QuickBooks objects. The left-side fields in the JSON structure represent QuickBooks fields, while the right-side fields represent Salesforce fields.

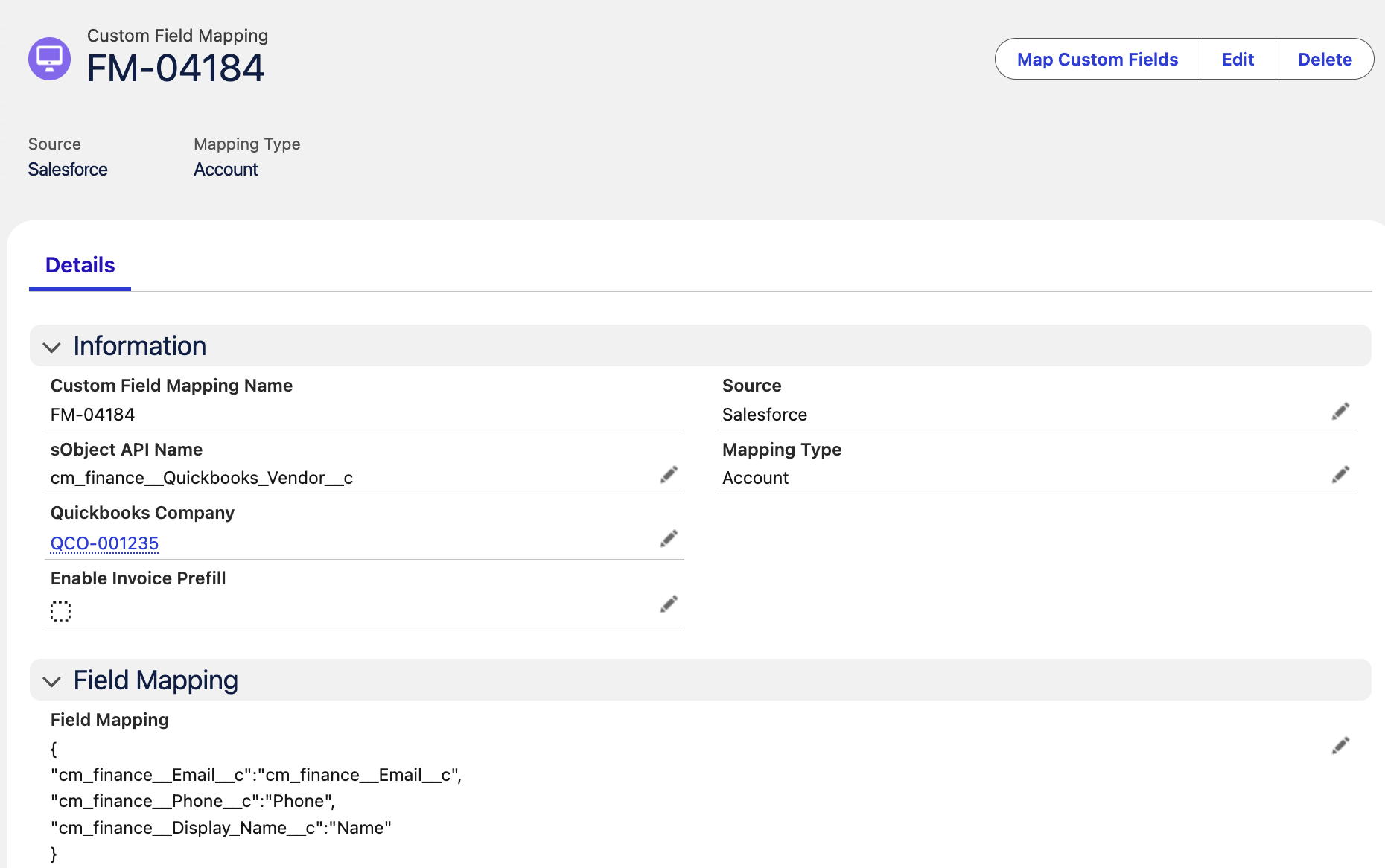

Sample Reverse Field Mapping

{
"cm_finance__Email__c":"cm_finance__Email__c",
"cm_finance__Phone__c":"Phone",
"cm_finance__Display_Name__c":"Name"
}

3. Quickbooks Custom Fields Mapping

QuickBooks allows the creation of custom fields on the Sales Form object, including Invoices and Sales Receipts, and supports sending up to three fields via API. To facilitate data exchange, the QB_Custom_Field_Mapping__c field must be populated within the cm_finance__Custom_Field_Mapping__c object.

To map custom fields for Sales Receipts, follow the steps below.

Once the cm_finance__Quickbooks_Custom_Field__c records are available in your Salesforce org, navigate to the cm_finance__Custom_Field_Mapping__c record with Mapping Type set to Sales Receipt and Source as QuickBooks to map the entries accordingly.

To pull the cm_finance__Quickbooks_Custom_Field__c records -

Go to the Admin Setup LWC in CM Quickbooks Connector application
Click on the Sync Data From Quickbooks
Click on Custom Fields Icon.

Click on the button “Map Custom Fields”.

Screenshot 2025-03-18 at 11.43.27 PM.png

A LWC modal window will pop up like below. On the left side, you’ll see all the QB Custom Field records that are pulled inside your Salesforce org.

Screenshot 2025-03-18 at 11.43.39 PM.png

On the right side, you’ll see all the fields of your Source Object to be mapped to each QB custom field.

Screenshot 2025-03-18 at 11.43.48 PM.png

The checkbox is present for users to automatically update the Reverse field Mapping, where the Custom Fields received via the QuickBooks Invoice or Sales Receipt API will populate the parent record's fields.

Once the mapping is complete, click on Submit Mapping button.

Screenshot 2025-03-18 at 11.44.11 PM.png

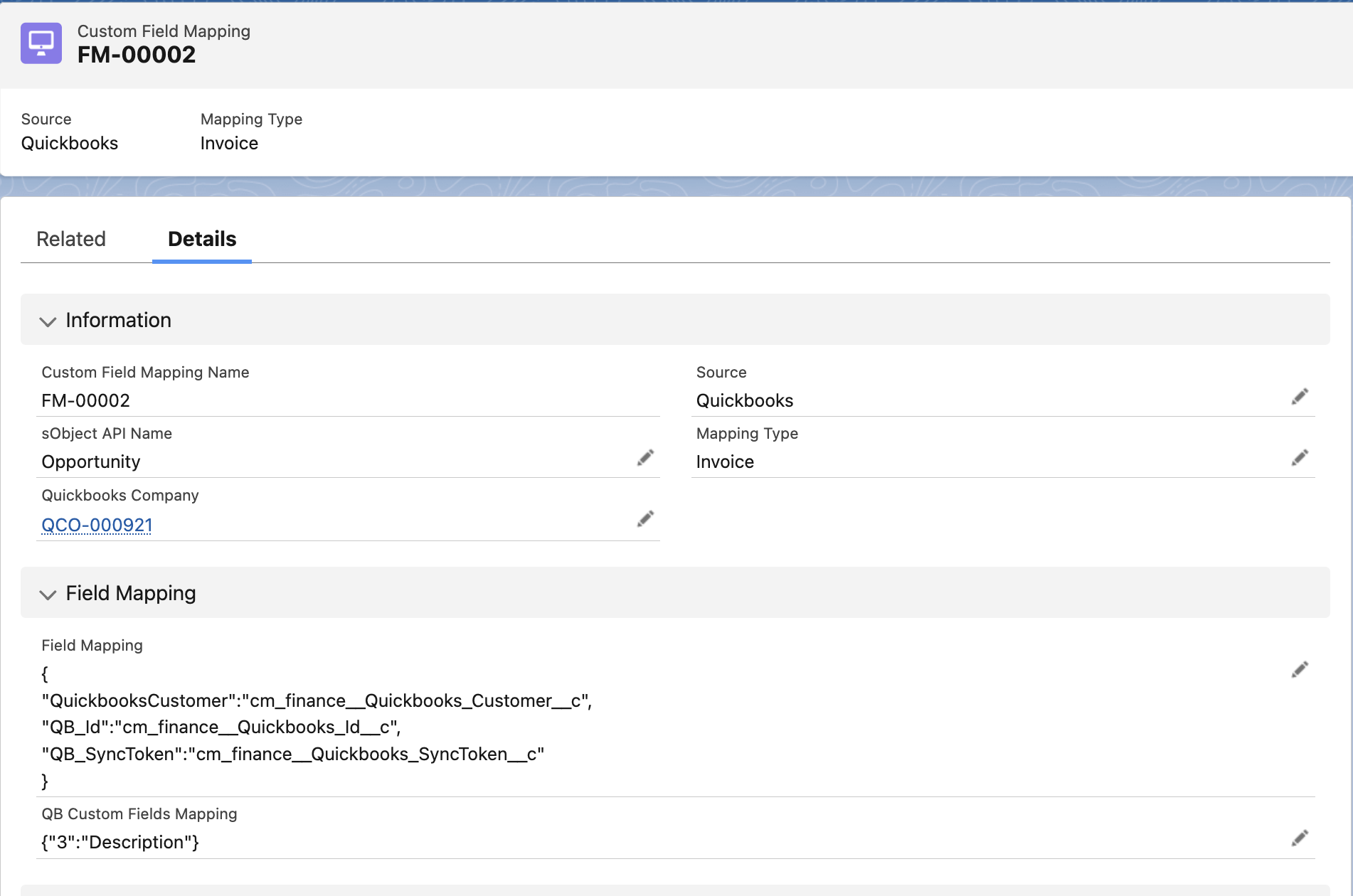

Once the button is clicked, the QB_Custom_Field_Mapping__c field will be populated as below:

Screenshot 2025-03-18 at 11.44.32 PM.png

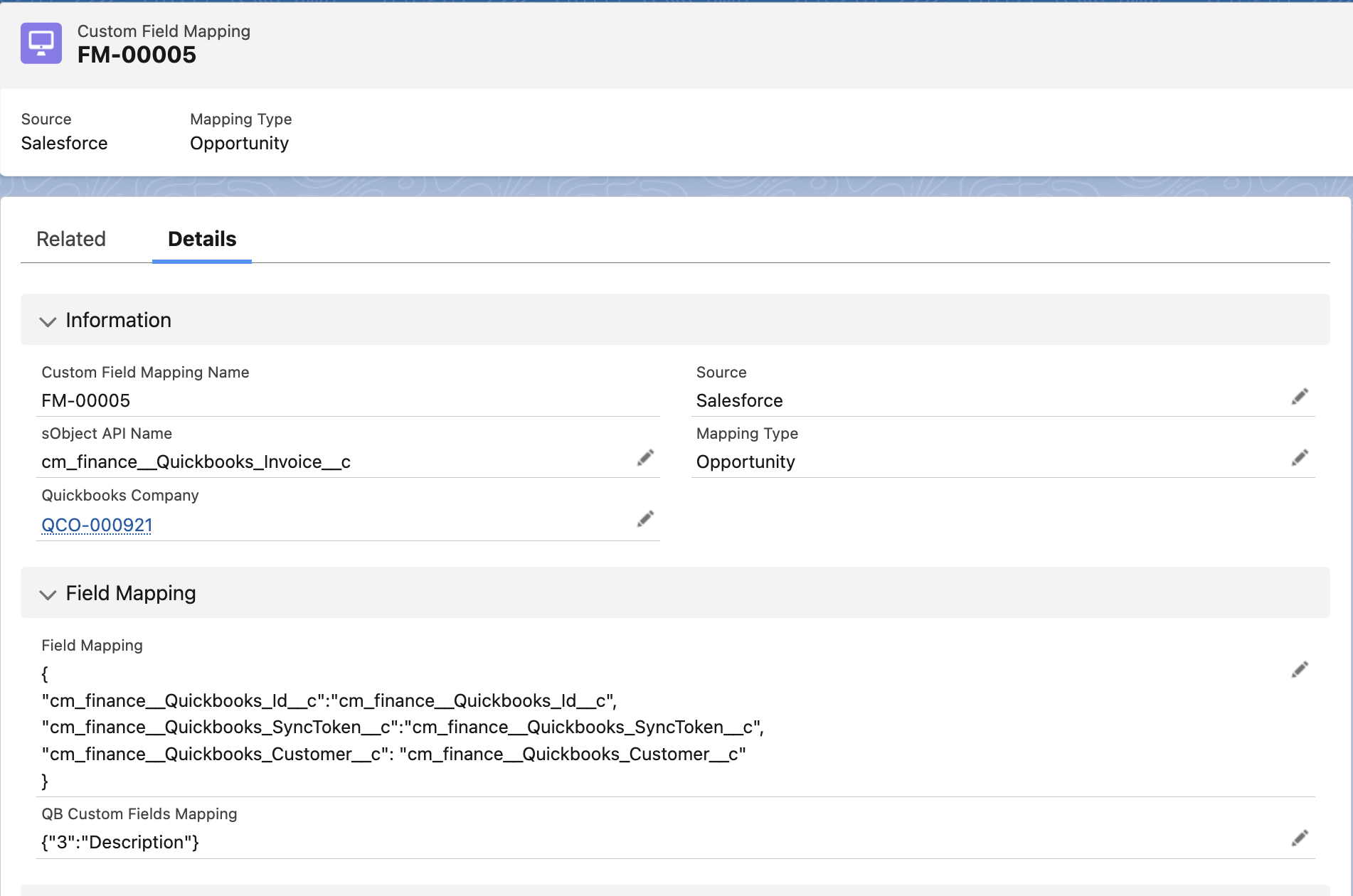

If the checkbox was checked, the reverse field mapping for QB Custom Field Mapping for the same Source Object will be populated automatically.

Screenshot 2025-03-18 at 11.44.39 PM.png

This guide provides a structured approach to creating and managing custom field mappings, ensuring seamless data synchronization between Salesforce and QuickBooks.
